Hockey Board Bracket – Anchor Plates


Use the D1 Anchor Plate as your secure hockey board bracket. This solid hockey board support is recommended for permanent hockey board installations or with synthetic ice rinks that feature D1 Hockey Boards.

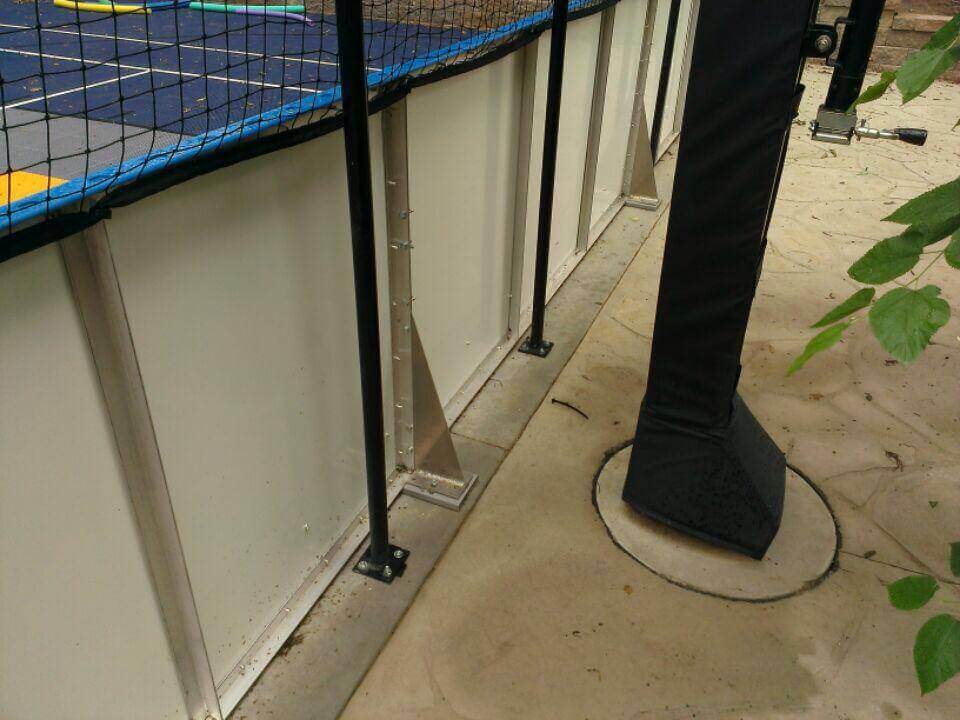

The Anchor Plate is 21″ tall and sits 12″ behind the D1 Hockey Boards.  For every hockey board you install, one Anchor Plate is required.

Please note: if you desire a 20′ x 40′ rink (for example), you will want at least a 22′ x 42′ sub surface to accommodate the Anchor Plates.

At ground level, there are two (3/8” diameter) holes.  We recommend lagging at least 2” into any hard flat surface, but no more than 1/2” from the bottom of the depth of the sub surface.  The Anchor Plates work well when fastening to concrete, wood or asphalt.

Please note: for asphalt installations, we recommend the use of an asphalt grout to help secure the fasteners as asphalt tends to get soft when it experiences thermal (heat) change.

Once the Anchor Plates have been installed, the D1 Hockey Boards easily connect to the Anchor Plates to complete the installation.

SKU: board_supports_anchor_plates Category:

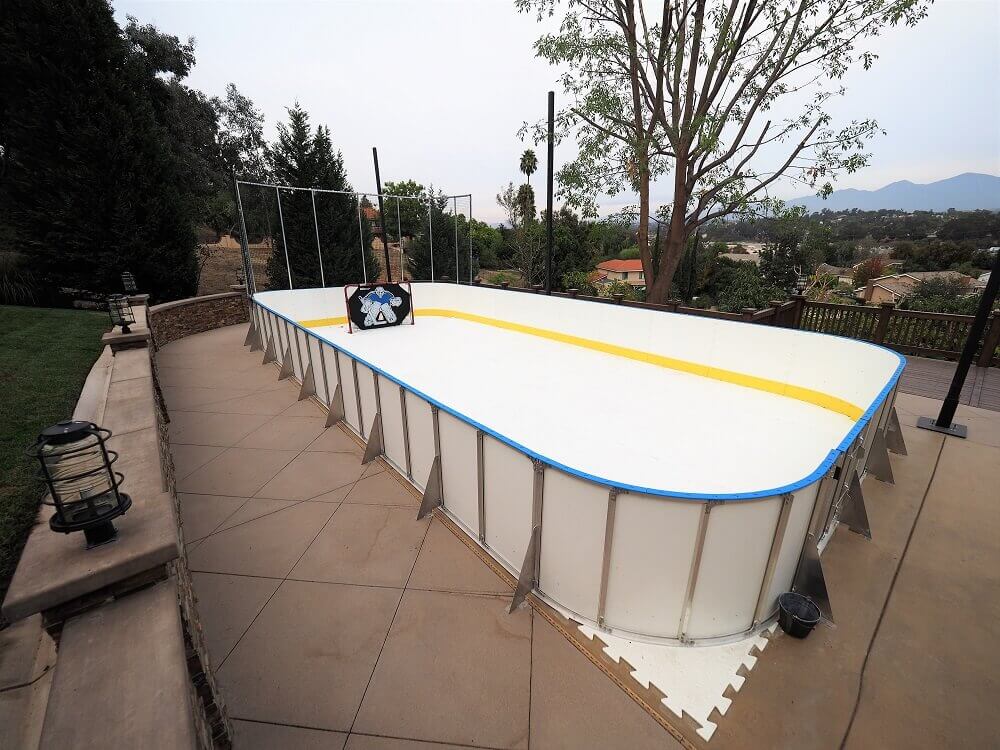

Backyard Synthetic Ice Rink - Laguna Hills, CA

Hockey Board Bracket – Anchor Plates

This solid hockey board bracket is recommended for permanent hockey board installations or with synthetic ice rinks featuring D1 Hockey Boards.

Smart Hockey Rink Design

All D1 hockey boards are made with a heavy duty aluminum frame.  The boards are fully assembled with the same dasher material you would find in a regulation ice rink featuring a BLUE caprail, WHITE dasher face and YELLOW kickplate.

Multiple Installation Options

There are several methods for installing the D1 hockey rink boards.  Easily mount them directly to any wall or flat surface.  You may also choose from our permanent or portable board supports depending on the particulars of your rink project.

FREE Custom Boards

We will work with you to make your measurements work.  If your hockey rink project needs custom rink board(s) made to ensure a perfect fit, we will customize our hockey arena boards at no charge.  This is especially the case for basement rinks or garage rinks and for those outdoor hockey rinks or synthetic ice rinks.

Indoor or Outdoor

You may install your hockey boards inside or out.  The dasher material (hockey board plastic) used to make the D1 rink boards are infused with a UV stabilizer.  This protects against the sun and any unwanted discoloration over time.

Largest Supplier

Thousands of customers have trusted D1 to provide them with a superior hockey rink; including the homes of youth hockey players, commercial training facilities and many NCAA & professional hockey teams.

Selecting the hockey boards that is the best fit for you involves a several factors.  Our hockey rink designers will recommend the best solution for your hockey rink project.

Combine the D1 hockey boards with D1 Synthetic Ice and make a great hockey rink!

Manufacturer Discounts

We have several programs in place to help our customers save.  For example, families with players part of a youth hockey association (USA Hockey or Hockey Canada) may receive a substantial savings. We have several programs in place to help our commercial customers save!


Framing: Stainless Aluminum

Height: 21″

Width: 4″

Weight: 1 lb

Additional information

Weight 1 lbs
Dimensions 6 × 10 × 21 in
